Mini-Split HVAC System

A mini-split system, also known as a ductless mini-split AC system, is a heating and cooling system that can help you create and keep the right temperature inside your home or another building.

Unlike traditional heating and cooling systems, mini-splits offer zone control; that is, they can be installed in each room of your home, allowing you to control the temperature in each room independently.

Components of Mini-Split Unit

A mini-split system has three components: an outdoor unit, an indoor unit, and a conduit.

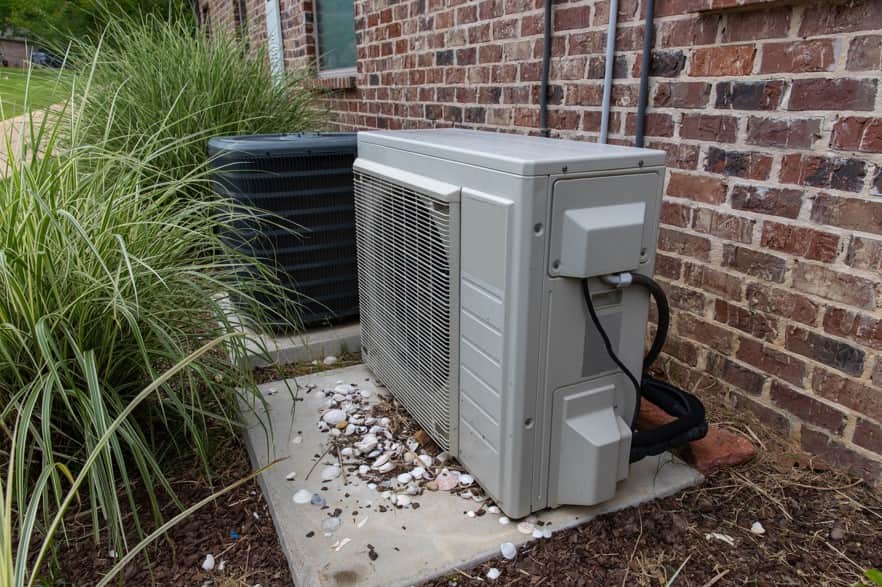

Outdoor Unit

The outdoor unit is part of the system installed outside of a home, also known as the compressor or condenser. It’s basically the powerhouse of the mini-split system.

The outdoor unit has three main components: the compressor, the condenser coil, and the fan. The compressor pumps refrigerant through the system; the condenser coil expels heat from the house to the outdoors, and the fan blows air over the condenser coil to help dissipate the heat.

This unit is designed to withstand weather conditions, and it’s often built with a durable casing to protect the internal parts.

Indoor Unit

The indoor unit is installed inside a home, and it’s usually mounted high on a wall, although some models can be placed near the ceiling or on the floor, depending on the model.

The unit comprises the evaporator coil and a fan. The evaporator coil absorbs heat and humidity from the room, and the fan distributes the cooled or heated air into the room.

These indoor units are designed to be slim, sleek, and relatively quiet when in operation.


The conduit is a grouping of several lines or cables, each with a different function, all bundled together. It’s the one that connects the indoor and outdoor units.

It usually includes the following components:

  • Refrigerant Tubing: This is composed of two copper pipes that carry refrigerant between the indoor and outdoor units. One line carries refrigerant from the outdoor unit to the indoor unit, cooling the indoor space when it evaporates. The other line returns the refrigerant to the outdoor unit, where it’s compressed and cooled, ready to be sent back indoors.
  • Electrical Wiring: This supplies power to the indoor unit from the outdoor unit. These wires are responsible for the operation of the fan motor, circuit board, and other electrical components in the indoor unit.
  • Suction Tubing: This insulation-covered tubing is used to prevent any loss of energy (heat transfer) as the refrigerant moves back and forth between the units.
  • Condensate Drain Line: When the indoor unit cools the room, it also dehumidifies the air. The moisture that’s removed from the air can condense into the water on the indoor unit’s evaporator coil. This water then needs to be drained away, which is the job of the condensate drain line.

Types of Mini-Split Systems

There are primarily two types of mini-split systems, and they’re categorized based on the number of indoor units they’re connected to.

These are the single-zone and multi-zone mini-split systems.

Single-Zone Mini-Split Systems

As the name implies, these systems are designed to serve a single zone or room in your home. In simpler terms, one outdoor unit is linked to one indoor unit.

Single-zone systems are great for instances where you have a specific area that needs individual temperature control. Maybe it’s a sunroom that gets too hot in the summer, a basement that’s always chilly, or a home office where you need to create a comfortable working environment.

Because they’re focused on one area, single-zone systems can be highly efficient, and they allow for precise temperature control in that designated space.

Multi-Zone Mini-Split Systems

Multi-zone systems involve one outdoor unit that’s connected to multiple indoor units. Each indoor unit can control the temperature in a different room or zone.

So, let’s say you have a three-bedroom home, and you want each bedroom to have its own temperature control. With a multi-zone system, you can do just that.

Each bedroom gets its own indoor unit, but they all connect back to a single outdoor unit. This can be particularly handy for larger homes or homes with unique heating and cooling needs in different rooms.

However, it’s worth noting that multi-zone systems are typically more complex and can be more costly to install than single-zone systems.

They require more indoor units, and potentially more conduits, which can increase both equipment and installation costs.

But, on the flip side, they offer a lot of flexibility and individual control and can be a more efficient choice for larger homes as compared to installing multiple single-zone systems.

The Benefits of a Mini-Split HVAC System

Multi-split HVAC systems combine many different advantages. Some of them are as follows:

Energy Efficiency and Cost Savings

Mini-split systems are recognized for their impressive energy efficiency. Unlike traditional heating and cooling systems that can lose a lot of energy via ductwork, mini-splits are ductless, so they avoid these losses altogether.

This means they use less energy to heat or cool your home, which in turn can lower your energy bills. Plus, with high-efficiency models, you could save even more. So, over the long run, while the upfront costs might be higher, a mini-split could end up saving you money.

Versatility and Flexibility in Installation

One of the key benefits of a mini-split system is its flexibility in installation. You can put the indoor units pretty much anywhere you want – high on a wall, in the ceiling, or even on the floor.

This can be a lifesaver in older homes where adding ductwork isn’t practical or in rooms where space is limited.

And since the connection between the outdoor and indoor units requires only a small hole in the wall, there’s no need for major construction or renovation.

Independent Temperature Control

With a mini-split system, especially a multi-zone system, you can control the temperature in each room or zone independently.

This means you can have the heat on in one room while the AC is running in another, or you can turn off the cooling or heating in unused rooms to save energy.

This can be a game-changer for families or housemates with different temperature preferences.

Minimal Noise and Unobtrusive Design

Mini-splits are known for their minimal noise and unobtrusive design. Traditional HVAC systems can be quite noisy, but mini-splits are typically much quieter. In fact, some models are almost whisper-quiet.

Also, their slim, compact design allows them to blend in with most interior décor. Unlike bulky window units, mini-splits don’t obstruct views or let in drafts.

Drawbacks of a Mini-Split

Initial Installation Costs

Mini-split systems can be quite costly to install. The exact cost can vary depending on several factors, including the number of indoor units required, the brand of the system, and the complexity of the installation process.

Generally speaking, the upfront cost of a mini-split system, especially a multi-zone system, can be higher than traditional HVAC systems or window units. While you may save money in the long run due to the system’s energy efficiency, the initial investment can be a deterrent for some.

Need for Professional Installation and Maintenance

Unlike window units that you can install yourself, mini-split systems generally require professional installation. An HVAC technician will need to determine the best location for both the outdoor and indoor units, drill the hole for the conduit, and properly connect and secure everything.

If done improperly, it could lead to inefficient operation or even damage to the system. In addition to this, professional maintenance is also crucial for the system’s longevity and performance. So, the need for professional installation and maintenance adds to the cost and can be seen as a drawback.

Possible Aesthetic Considerations

While mini-split systems are designed to be less obtrusive than other options like window units, they’re still visible and may not fit everyone’s interior design preferences.

The indoor units, despite being sleek and relatively small, will be visible on your wall, ceiling, or floor, and some people might not like this.

The conduit running from the outdoor unit to the indoor unit could also be seen as unsightly, although it can often be hidden or painted to blend in with the exterior of your home.

Comparing Mini-Splits to Other HVAC Systems

Central Air Conditioning Systems

Central AC systems are quite common in many homes, especially in areas with hot climates. They cool air at a central location and then distribute it throughout the house using a system of ducts.

While they’re effective for cooling an entire home, they might not be the most energy efficient if you only want to cool certain rooms.

In contrast, mini-split systems can be more efficient because they’re ductless, eliminating the energy loss that can happen with ducts. However, central AC systems are often more visually discreet, as the only visible parts inside the house are the vents.

Window Air Conditioners

These are single units that fit into a window and cool a single room. Compared to window units, mini-splits are generally more efficient, quieter, and more visually appealing.

Window units can block a part of the window and are often noisy. However, these units tend to be less expensive and easier to install than mini-splits.

Portable Air Conditioners

These are standalone units that can be moved from room to room. They usually have a duct that vents out of a window.

Like window units, portable air conditioners are less efficient than mini-splits, can be quite noisy, and can take up floor space in a room. They’re also typically used for cooling only.

Mini-splits, on the other hand, provide both heating and cooling and once installed, they take up little to no floor space.

Key Factors to Consider When Choosing a Mini-Split System

Room Size and BTU Requirements

The size of the room or area you’re planning to heat or cool plays a crucial role in determining the capacity of the mini-split system you’ll need.

This is usually measured in BTUs (British Thermal Units). Larger spaces require a system with a higher BTU rating.

It’s important to get this right. A system that’s too small won’t effectively heat or cool the space, and one that’s too large will cycle on and off too frequently, reducing efficiency and potentially shortening its lifespan.

A professional HVAC contractor can help you calculate the appropriate BTU requirement for your space.

Energy Efficiency Ratings

When shopping for a mini-split system, you’ll likely come across terms like SEER (Seasonal Energy Efficiency Ratio) and HSPF (Heating Seasonal Performance Factor).

These ratings give you an idea of the system’s energy efficiency. A higher SEER or HSPF rating means a more energy-efficient system, which can lead to lower energy costs in the long run.

While more efficient models might be more expensive upfront, they could save you money over time through reduced energy bills.

Brand and Price

Just like any other product, mini-split systems come in a range of brands and prices. More reputable brands may offer higher-quality products, but they often come with a higher price tag.

When considering brand and price, it’s essential to balance the quality and features of the system with your budget.

Additionally, it’s wise to read reviews and do some research on the reliability and performance of different brands.

Warranty and Support

A warranty can give you peace of mind in case anything goes wrong with your system. Different manufacturers offer different warranty terms, so be sure to compare these when making your decision.

Also, consider the level of customer support provided by the manufacturer. If something does go wrong, you’ll want to ensure you have access to timely and helpful support.

Final Thoughts

Mini-split systems are a versatile and efficient HVAC solution, ideal for homes without existing ductwork or those with varying temperature needs across different rooms.

They offer energy efficiency, which translates to potential cost savings in the long run, and independent temperature control, allowing customization per room or zone.

While initial costs might be higher, and professional installation is needed, their benefits often make them an attractive choice.

As with any investment, considering factors like room size, efficiency ratings, brand, price, and warranty can help you find the best fit for your home.
